Testing Thermostat Wires: The Ultimate Guide

Oleh Regina Keebler May 28, 2023 Post a Comment

Thermostats are an important part of your home heating and cooling system. They control the temperature by turning the furnace or air conditioner on and off. However, if you have a malfunctioning thermostat, it can lead to discomfort and higher utility bills. One common issue with thermostats is faulty wiring. In this article, we will guide you through the process of testing thermostat wires.

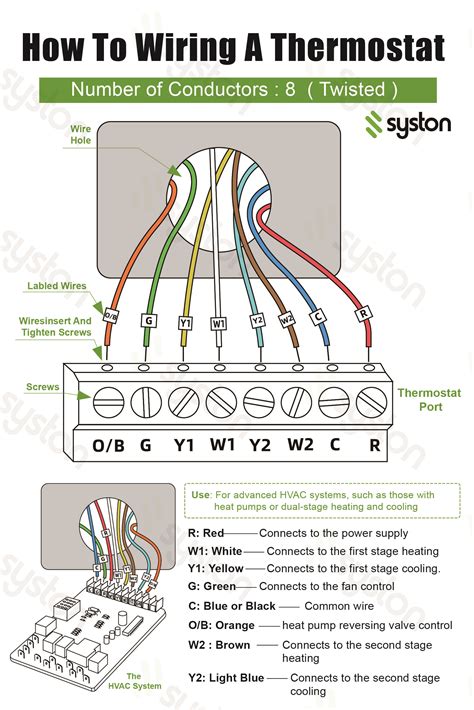

Understanding Thermostat Wires

Before we dive into how to test thermostat wires, let's understand the basics of thermostat wiring. Thermostats typically have five wires, each of which serves a specific purpose. These wires include:

Red Wire (R) - This wire connects to the 24-volt power supply.
White Wire (W) - This wire connects to the furnace's heat source.
Green Wire (G) - This wire connects to the furnace's fan.
Yellow Wire (Y) - This wire connects to the air conditioning unit's compressor.
Blue Wire (C) - This wire connects to the common terminal.

It is essential to understand the function of each wire before attempting to test them. Failure to do so may cause damage to your HVAC system.

Tools Needed for Testing Thermostat Wires

To test thermostat wires, you will need a few tools. These include:

A multi-meter
Electrical tape
Screwdriver
Needle-nose pliers
Wire stripper

Ensure that you have all these tools before proceeding to test your thermostat wires.

How to Test Thermostat Wires: Step-by-Step Guide

Now that we have covered the basics let's dive into how to test thermostat wires. Follow these steps to determine whether your thermostat wires are functioning correctly:

Step 1: Turn Off Power

Before you testing, turn off the power to your HVAC system. You can do this by turning off the circuit breaker that powers your furnace or air conditioner.

Step 2: Remove Thermostat Cover

Use a screwdriver to remove the thermostat cover. This will give you access to the wires.

Step 3: Disconnect Wires

Disconnect all the wires from the terminal block, taking note of their respective positions.

Step 4: Set Multi-meter to Ohms

Set your multi-meter to read ohms. This setting measures the resistance of the wire.

Step 5: Test Each Wire

Touch the red probe on the multi-meter to one end of the first wire and the black probe to the other end. If the meter reads zero ohms, the wire is functioning correctly. Repeat this process for each wire.

Step 6: Check for Continuity

Next, test for continuity. Touch one probe to one end of the wire and the other probe to the terminal block. If the meter reads zero ohms, there is continuity in the circuit.

Step 7: Check for Short Circuits

To check for short circuits, touch one probe to one end of the wire and the other probe to the bare metal housing of the HVAC system. If the meter reads above zero ohms, there is a short circuit in the circuit.

Step 8: Reconnect Wires

After testing each wire, reconnect them to their respective terminals, ensuring they are correctly positioned.

Step 9: Turn On Power

Turn on the circuit breaker to power up your HVAC system and test whether it is working correctly.

Troubleshooting Common Issues with Thermostat Wires

Now that we have covered how to test thermostat wires let's look at common issues that may arise and how to troubleshoot them.

Issue 1: Blown Fuse

If you have a blown fuse, it may be due to a short circuit in the thermostat wires. You can check this by disconnecting all the wires and testing each wire for continuity and short circuits.

Issue 2: No Power

If your HVAC system is not receiving power, it could be due to a broken or disconnected wire. Check each wire for continuity and replace any broken wires.

Issue 3: Inconsistent Temperature

If your thermostat is not providing consistent temperature, it may be due to faulty wiring. Check each wire for continuity and short circuits.

Frequently Asked Questions

Q1: Can I test my thermostat wires without a multi-meter?

A: No, a multi-meter is essential for testing thermostat wires accurately.

Q2: How often should I test my thermostat wires?

A: It is recommended to test your thermostat wires once a year.

Q3: What should I do if my thermostat wires are not working correctly?

A: If you have tested your thermostat wires and they are not functioning correctly, contact a professional HVAC technician.

Q4: Can I replace my thermostat wires myself?

A: Unless you have experience in electrical work, it is best to leave the replacement of thermostat wires to a professional.

Q5: What happens if I connect wires to the wrong terminals?

A: Connecting wires to the wrong terminal can cause damage to your HVAC system.

Q6: Can I use a digital multi-meter to test my thermostat wires?

A: Yes, a digital multi-meter is an acceptable tool for testing thermostat wires.

Q7: Is it safe to test thermostat wires myself?

A: As long as you turn off power to your HVAC system before testing, it is safe to test thermostat wires.

Q8: What should I do if my multi-meter readings are inconsistent?

A: If your multi-meter readings are inconsistent, it may be due to a faulty multi-meter. Replace it with a new one.

Q9: Can I test my thermostat wires during the winter?

A: Yes, you can test your thermostat wires at any time of the year.

Q10: How long does it take to test thermostat wires?

A: Testing thermostat wires typically takes around 30 minutes.

Testing thermostat wires is an essential step in ensuring your HVAC system is functioning correctly. Follow the steps outlined in this article to test your thermostat wires accurately and troubleshoot common issues that may arise. Remember to turn off power before testing and contact a professional HVAC technician if you are unsure or uncomfortable with testing thermostat wires.
